HIGH ENERGY IGNITION SYSTEM

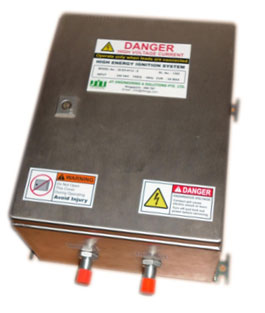

EXCITOR POWER PACK:

» No of Output : Standard Dual (Optional Four)

» Input Power : 230VAC @5A Max

» Output Voltage : 2500VDC

» Stored Energy : 12 Joule

» Duty Cycle : 15Min ON - 15Min OFF

» SPARK RATE : Greater than 4 Sparks/sec

» Enclosure : Standard / ExProof-IP66

» Push Button Box : Explosion Proof with 10ft. cable.

» Dimension : 15 x 12 x 9 (L x W x H)
HT FLEXIBLE CABLE

» Nickel Braid Shielded Conduit with PVC Coating.

» LENGTH of 30 Feet ( Each Output)

» Operating Temperatureis 125C

» Special High Temperature Treatment to 1 Mtr. from spark rod.
SPARK ROD & TIP

» Length : 10 Inch

» Operating Temperature :650C

» Material : Stainless Steel

» Pilot Flame Gun : Gas & Diesel
